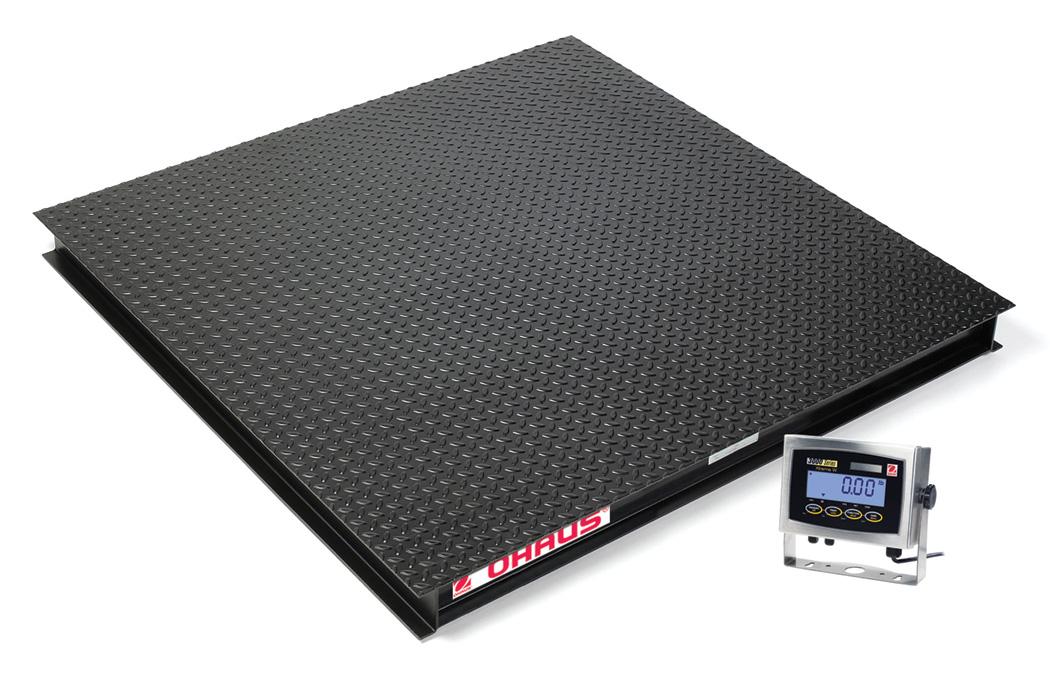

Ohaus VX31XW5000X 5x5 5000 lb. Series Standard Floor Scale
Systems
VX
Standard Features Include:
• 2,500 lb, 5,000 lb, and 10,000 lb scale capacities
• 4’ x 4’ and 5’ x 5’ platforms with structural bracing that ensures a
rigid construction
• 1/8” (up to 5,000lb models) and 5/16” (10,000lb models) thick top plate
with raised cross-hatch surface for added durability and slip resistance
• Four IP67 nickel plated alloy steel load cells
• Side access NEMA 4X dust and water protected junction box with 25’ long
cable
• Features eye bolt mounting holes to allow easier lifting and positioning
of the platform
• Factory-wired and pre-calibrated with T31XW stainless steel indicator
featuring:
• 304 stainless steel construction with NEMA 4X protection
• Backlit LCD display with high-visibility 1” high digits
• Five weighing units (lb, kg, g, oz, lb:oz)
• Piece counting mode for warehousing and inventory applications
• Wall mount bracket included |
The OHAUS
VX Series is a portable low-profile floor platform and indicator scale package.
It is the ideal solution for freight consolidators, forwarders, processing plants,
resellers, shipping and receiving departments, as well as startup businesses.
Quick connects and factory calibration allows the package to operate out-of-the-box
with minimal setup. This time saving solution combines a 5000d 5x5 floor scale
with four analog sealed load cells, and a stainless steel NEMA 4X / IP66 indicator
(T31XW) featuring an RS232 interface, high-visibility backlit LCD display, counting
function and easy-to-operate positive feedback keys.
VX
Floor Scale Brochure (pdf file)
VX Series Floor
Scales Include The Durable T31XW Indicator
|
T31XW Features:
• Large 1” high digit backlit LCD display quickly displays results in
a choice of lb or kg. The power-on unit is selectable, and either the
lb or kg unit can be turned off for easier use.
• Includes Counting
Mode with a minimum Average Piece Weight of 1d, selectable sample sizes,
automatic retention of last sample size used and Average Piece Weight.
For installations where Counting Mode is not required, the parts counting
software can be selected off.
• Built-in bidirectional
RS232C interface for printing or connection to PC. Printing intervals
can be set to manual (using Print key), continuous, on stable weight,
or an interval between 1 second and 60 minutes.
• Geographical gravity
correction software allows quick adjustment of calibration to local
conditions without need for recalibration of the VX Floor Scale. All
VX Floor Scales are factory calibrated and must be set to match local
gravity situation.
• The T31XW can
be wall or table mounted using the included wall mount bracket for full
tilt adjustment of the indicator.
|
Compliance
• Safety and EMC: EN60950, EN61326, FCC, CE, cULus
• NTEP Certs: T31XW Indicator: CC 08-066 / VX Platform: CC 08-069 / Load cells:
CC 91-043A4
• Quality: OHAUS quality management system registered to ISO 9001:2000
|
Accessories
80252766 Floor
Ramp, 48" Wide for 2.5k and 5k VX Floor Scale
80252767 Floor Ramp, 60" Wide for 5k VX Floor Scale
80252796 Floor Ramp, 60" Wide for 10k VX Floor Scale
80252795 Floor Ramp, 48" Wide for 10k VX Floor Scale
|
PRICE INCLUDES GROUND SHIPPING (cont'l US) to business addresses only(Zoned Commercial) with a loading dock or fork-lift. All other charges are the buyers responsibility.(Liftgate, Residential,Construction,Military)
