Compact Design
Light weight and compact the TL6000 answers most overhead weighing requirement but now provides the ultimate in portability. Perfect for weighing in multiple locations. It allows easy installation into almost any line and reduces headroom loss due to the low overall height. The TL6000 is your mobile weighing and line tension device for use anywhere and anytime.

Unparallel Accuracy
Performance characteristics wouldn't mean a thing if not for the TL6000's unparalleled accuracy AND repeatability. Temperature compensation and state of the art strain gauge sensors provide an accuracy of +/-0.1% of applied load. Unique microprocessor technology requires only three point Linearization for simple and straight forward keypad calibration. All standards are traceable to the National Institute of Standards and Technologies. Formal calibration certificates are standard with each unit.

Durable Construction
The TL6000 is constructed from high strength aluminum, carbon or stainless steel. All models are sealed for maximum protection against repeated strain, corrosion and deterioration, thereby granting a longer life. Shock mounted and capable of withstanding loads up to 200% of rated capacity and maintains a safety factor of 5:1. All load bearing components capable of meeting U.S. Navy hardness ratings. Uses Crosby top and bottom shackles (available as options). NEMA 4X / IP 65 environmentally sealed for all weather performance.

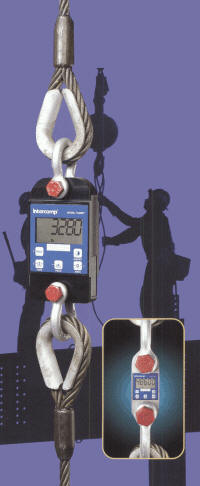

TL6000 Tension Link Scale, Capacities from 500 lb/250 kg - 10,000 lb / 5000kg Monitor, control and test overhead and tension loads. NEMA 4X / IP 65 aluminum, carbon, or stainless steel enclosure. Large 1.2 inch/30 mm LCD with membrane switches. Operates from two 9-volt alkaline batteries for up to 800 hours. Wireless remote control display is optional.

TL6000 Tension Link -- Aluminum construction for 10K units and below

TL6000 Tension Link Stainless Steel Construction for 25,000 lb/12,500kg units and above....



Part Number	Description	Capacity	Ship Weight
150000	Tension Link Scale 500 x 0.5	500 x 0.5 lb	5 lb
150001	Tension Link Scale 1,000 x 1	1,000 x 1 lb	5 lb
150002	Tension Link Scale 2,000 x 2	2,000 x 2 lb	5 lb
150003	Tension Link Scale 5,000 x 5	5,000 x 5 lb	5 lb
150004	Tension Link Scale 10,000 x 10	10,000 x 10 lb	10lb
150005	Tension Link Scale 25,000 x 20	25,000 x 20 lb	10 lb
150006	Tension Link Scale 50,000 x 50	50,000 x 50 lb	35 lb
150007	Tension Link Scale 100,000 x 100	100,000 x 100 lb	65 lb
150008	Tension Link Scale 160,000 x 200	160,000 x 200 lb	65 lb
150009	Tension Link Scale 220,000 x 200	220,000 x 200 lb	100 lb
150010	Tension Link Scale 350,000 x 500	350,000 x 500 lb	175 lb
150011	Tension Link Scale 400,000 x 500	400,000 x 500 lb	250 lb
150012	Tension Link Scale 500,000 x 500	500,000 x 500 lb	300 lb
Options (G-2130 Shackles)
150100	Top & Bottom Pair 500-5000 lb
150101	Top & Bottom Pair 10,000 lb
150102	Top & Bottom Pair 25,000 lb
150103	Top & Bottom Pair 50,000 lb
150104	Top & Bottom Pair 100,000 lb
	Options (G-2140 Shackles)
150105	Top & Bottom Pair 160,000 lb
150106	Top & Bottom Pair 220,000 lb
150107	Top & Bottom Pair 350,000 lb
150108	Top & Bottom Pair 400,000 lb
150109	Top & Bottom Pair 500,000 lb



Specifications
Construction:	Aluminum, Carbon or Stainless Steel
Accuracy:	+/- 0.1% of applied load or +/- 1 graduation; whichever is greater
Display:	Five digit 1.2 inch / 30 mm high LCD
Control Keys:	On/Off, Zero (100%), Tare (100%) Peak Hold and Mode
Annunciators:	Low Battery, Peak Hold, Set Points 1 & 2, lb, kg, tons, metric tons and dekaNewtons
Power:	One or two (9V) batteries
Operating Temperature:	-4 F to 140 F --- -20 C to 60 C
Enclosure:	NEMA 4X / IP 65
Overload:	200% safe, 500% ultimate
Calibration:	Digital Keypad, Multi-Point

TL6000 Wireless Remote Control Display

If cables get in the way of your operation, rest assured the TL-RF (pn: 150138) series wireless remote indicators can get around and operate within a wide band of frequencies at distances up to 300 feet / 100 meters. Intercomp utilizes powerful transceivers that are FCC certified and require no special licensing requirements.

TL6000 Display Remote Control

Accessorize the TL6000 with an optional full function remote control display. Hardwired to link for applications where wireless option is not feasible. Single display (pn: 150111) remote allows you to view weight from remote only (no display on tension link). Tandem display remote (pn: 150113) allows you to view weight on both tension link and the remote display.

TL6000 Carrying Case

Optional sturdy carrying case provides added protection and system portability.

No rush shipping -- Lead time on these items is normally 2 to 4 weeks
