Features & Benefits
Fast Digital Response – Speeds processing time that results in improved throughput and increased productivity.
Simple to Use – Reduces operator training time.
DuraBridge® Technology – Reduces overall scale deflection when a full load is applied.
Resident Display – Front mounted, 1/2" H, six-digit LCD display.
Large Weigh Platters – Easily accommodates oversize parcels or containers.
Versatile – Can be set up in either decimal pounds or kilogram mode.
Construction – Stainless steel weigh platter. Painted mild steel base enclosure.
RS-232 Cable – DB-9 pin female connector allows you to connect to a PC.
Controls – ZERO: With auto zero tracking for zeroing the scale. TEST: Runs a diagnostic program to assure scale is fully functional.
I/O Port – Allows for connection to a computer or smart terminal. Uses standard PC cable to 9-pin "D" connector on scale. RS-232, bidirectional, configurable 1200 - 19.2K baud. Transmits weight and scale status whenever ASCII “W” <CR> is sent by a remote device. High resolution “H” command accesses increased resolution.
Power Supply – Recessed power supply with standard wall plug.
Specifications
Capacity and Resolution:
250 lb x .05 lb or 100 kg x .02 kg
Weight classifier or scale configurations available in setup.
Shipping Weight:
70 lbs (Standard Configuration)
Platter Size: 18” x 24”
Power: 120 VAC (+10%-15%), 60 Hz, standard 3-wire ground.
Agency Approvals:
United States: NTEP #95-121
Canada: MOI #AM-5099 Rev. 1 For use as a Class III Device from +5°C through 40°C
Operating Environment: 42°F to 104°F (5°C to 40°C), 10% to 95%, RH (non-condensing)
| Part Number |
Description
|
Ship Wt.
|
| 9503-15791* |
7840 250 lb w/ 18x24 flat platter
|
68 lb (31 kg)
|
RS-232 10' Interface Cable (9 Pin to 9 Pin) included with each scale.
|
Options: |
| Also available: | ||

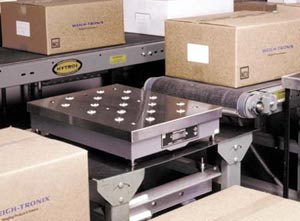

| 9503-15793 | 7840 250 lb w/Ball Top | 75 lb (34 kg) |
*Custom or non-stock item. Please allow 5-day lead time.
