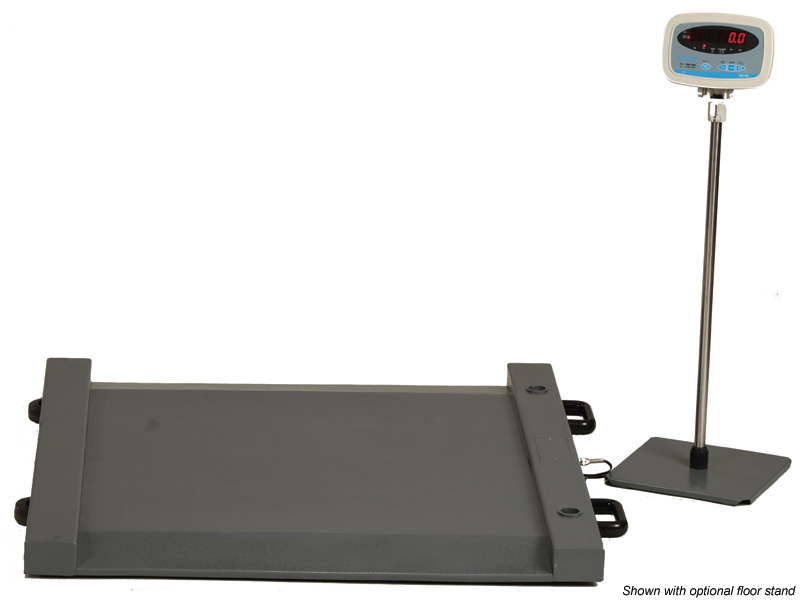

The DS1000-LCD Drum Weigher Scale is ideal for any busy shipping area where goods are constantly being moved around by pallet jacks or for monitoring drum weights.
This portable, low profile floor scale features a powder coated rugged steel deck with a gradual 9% entry and exit ramp making it very easy to roll drums on and off the platform.
Simple to-operate, the indicator offers all the weighing functions needed for a wide range of applications as well as the display-hold function that retains results on the screen.
AC and battery powered means this scale can easily be installed in remote locations where power sockets are not available.
Typical Applications: Shipping/Receiving Areas, Industrial, Warehouse
PRICE INCLUDES FREIGHT (cont'l US) - ships LTL freight on a pallet to business locations with loading dock or forklift. Any other fees are buyers responsibility.
Accuracy - Provides consistent accuracy within 0.1% and comes equipped with a simple to operate indicator for fast LED digital readout
Construction - Powder coated rugged steel with smooth top plate surface and two handles and wheels to easily relocate. Adjustable foot pads to work effectively on uneven floors. Built-in ramp ends for recessed floors
Low Profile - 63.5 mm (2.5") high
Easy Assembly - No installation costs or parts that require maintenance. Just place the scale on a hard surface and level by adjusting the foot pads. Connect the power and you're ready to go
SPECIFICATIONS
Drum Scale Capacity: 500 kg x 0.2 (1,000 lb x 0.5 lb)
Loadcell Interface Cable: 3 m (10')
Overload Capacity: Capable of withstanding 150% capacity of weight without damaging the scale
Construction: Powder coated rugged steel with smooth top plate surface with four 1000 ohm loadcells
Unit Dimensions: Weighing platform: 800 mm x 800 mm x 46 mm (31.5" x 31.5" x 1.8")
Packaging Contents: Platform, Indicator and Hardware
Warranty one year limited from shipment
SBI 210 Indicator Specifications
Construction: Robust ABS housing
Annunciators: -0-, motion, gross, net, tare, hold, pcs,
%, HI/OK/LOW, battery, accumulation
Units: lb, kg, pcs, %
Tare: 100% subtractive. Ideal when filling to a set recipe.
Check Weighing: Used when packing or filling to a set weight. This provides the operator a fast & simple
visual to let them know the product is within the accepted weight window.
Counting: Used for stock control or to quickly work out the quantity of items within a box
Accumulation: Used when packing multiple items into one consignment to get the final consignment weight total
Hold: Allows a stable weight to be easily held once the goods have been removed from the scale
Percentage: Allows the operator to easily carry out weighments on % basis
Indicator Mounting: Can be desk mounted or pole mounted either vertically or horizontally
Display: Large, easy-to-read six digit 1.5" / 38 mm high digit LCD with backlight
Power: 9V 600mA, 110-230V switch mode external power supply with USA/UK/EU interchangeable plug
adapters or six AA batteries (not included)
Built-in Power Saving Features: Subject to how the scale is to be used, there are a number of ways to
prolong the battery life of this scale. From turning off the backlight to setting the auto-off to engage when
the scale is not in use.
Communication: RS232 bi-directional full duplex port
(Note: 816965004645 is the old part number for this item that included the SBI-100 indicator)
| Model |
Part #
|
Platform Size / Capacity
|
Ship Weight
|
| DS1000-LCD |
810036380270
|
31.5" x 31.5" / Capacity: 1000 x 0.5 lbs
|
185 lbs
|
