The Weigh-Tronix 7820 durable 12” x 14” Balltop Bench Scale provides a fast accurate weight reading that fits into any operation as a stand-alone scale, interfaced to a shipping manifest software or receiving station. Designed with a hard wearing stainless steel weight platter and a rugged aluminum die cast housing and load bridge that offers outstanding protect to the centrally mounted aluminum analog load cell. Supplied with a built-in, flush-fitting, six digit ½” high LCD display that is mounted in the front face of the base. An optional second remote display can be plugged in to give a customer facing weight reading.
A range of emulation protocols are available within the scale to allow you to quickly select the correct compatible communication protocol to interface with a wide range of third party post, mail and shipping software programs or host devices. This will be communicated through either a serial RS232, USB (HID) or USB (VCP) port found on the rear of the base. Connectivity is 1 x RS232 (9 way female D Type connector ), 1 x USB HID (Mini USB) or 1x USB VCP (USB-Type B) 1 x 2nd Remote display connection (RJ 45) All are positioned on the rear of the base.

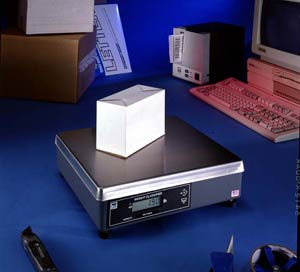

NCI 7820 Shipping Scale 100 Pound Capacity with Ball Top Platter
Old P/N 9503-16509 / New P/N AWT05-508639
|
Fast digital response - Speeds weight processing time Compact low profile base - Fits easily into any operation and provides convenient mobility. RS-232 bi-directional output - Allows for connection to a computer or smart terminal. High resolution mode - “H” command accesses increased resolution. Calibration - Alternate span points can simplify field calibration using less than full capacity weights. Overload protection- Overload stops located in base of scale. Simple to use - Reduces operator training time. RS-232 cable- Allows you to connect to a PC. Scale or Weight Classifier configurations are internally configurable. Specifications: Capacity: Construction Controls Weight Power Agencies Operating environment 42 to 104 F (5 C to 40 C), Class III device Humidity 10% to 95% RH, non-condensing Input/Output RS-232, bi-directional, configurable 1200 - 19.2K Baud. |
|
||||||||
