Doran PC500-10 Washdown Portion Control Digital Scale

Wasdown Safe IP66
The PC-500 features a soft silicone seal that protects against washdown spray and allows a high level of accuracy.

1000% Overload "Quad Spring"
The PC-500 includes our field proven, exclusive "Quad Spring" platform protection design that provides 1000% overload defense, eliminating damage from shock and overload damage.

Battery Powered
1,000 hour battery life using alkaline batteries. The auto shut-off feature will power down the scale when not in use. An AC adapter is available as an option.

Easy to Clean
The removable stainless steel platter can be easily cleaned. Designed to the exacting standards of NSF, the washdown safe PC-500 cleans easily and quickly and is now NTEP approved.

Five-Way Weight Display
Display samples below show the same weight (5lb 8oz) in five different units.
Press UNITS to select the weight display that best suits your needs. The optional
rear customer display shows the same weight as the main display.

The Doran PC-500, an IP66 washdown safe and rugged scale is the result of more than 30 years of design experience. The innovative PC-500 delivers a scale that tackles harsh environments of Washdown, Foodservice, and Industrial applications. Long battery life and a sleek, low profile design makes the PC-500 a perfect solution for your weighing needs.
washdown affordable digital battery power legal for trade scale

Optional Customer Display is available

Maximum Capacities Available
5, 10, 25, and 50lb

Resolution Range
0.002 to 0.02lb

Display
Main Display: 6 Digit, LCD, 0.66" High
Customer Display: 6 Digit, LCD, 0.66" High (optional)

Controls
Zero, Units, and On/Off

Indicators
lb, kg, g, oz, lb:oz, Motion, Low Battery, and Center of Zero

Power
DC Power Standard
Alkaline batteries, 1000 hour life
Optional 115V AC Adapter with 8' cable Available

Output
Bi-directional RS-232 (standard)

Units
lb, kg, g, oz, or lb:oz

Construction
Scale Platter - Stainless Steel
Case - High Impact Plastic

Dimensions
Scale Footprint
12.75" L x 9.75" W x 5.26" H
Scale Platter
8.5" x 8.5"

Warranty
Scale - One Year Limited Mfg.

Approvals
NTEP (Legal for Trade) Certifications
CC# PENDING 2500d Class III

Other Approvals
NSF
UL/ULc (optional transformer)

Options Available

AC Adapter (when using this, the scale may have reduced washdown protection, refer to manual for proper installation)

RS-232 Cable (when using this, the scale may have reduced washdown protection, refer to manual for proper installation)

w/ single display

Model
Capacity (lb)

Capacity (kg)

Capacity (oz)

PC500-05
5 x 0.002

2.2 x 0.001

80 x 0.05

PC500-10
10 x 0.005

4.5 x 0.002

160 x 0.1

PC500-25
25 x 0.01

11.3 x 0.005

400 x 0.2

PC500-50
50 x 0.02

22.7 x 0.01

800 x 0.5

w/ Front and Back Display (DUAL DISPLAY)
Model	Capacity (lb)	Capacity (kg)	Capacity (oz)
PC500-C05	5 x 0.002	2.2 x 0.001	80 x 0.05
PC500-C10	10 x 0.005	4.5 x 0.002	160 x 0.1
PC500-C25	25 x 0.01	11.3 x 0.005	400 x 0.2
PC500-C50	50 x 0.02	22.7 x 0.01	800 x 0.5

FREE SHIPPING (cont'l US only)
just use coupon code
Doran Freight

No rating yet... Be the first to rate this product!

Home	Balances	Cal Weights	Counting Scales	Crane Scales	Floor Scales
Legal for Trade Scales	Medical Scales	Produce Scale	Shipping Scale	Vet Scales	Wheel Weighers

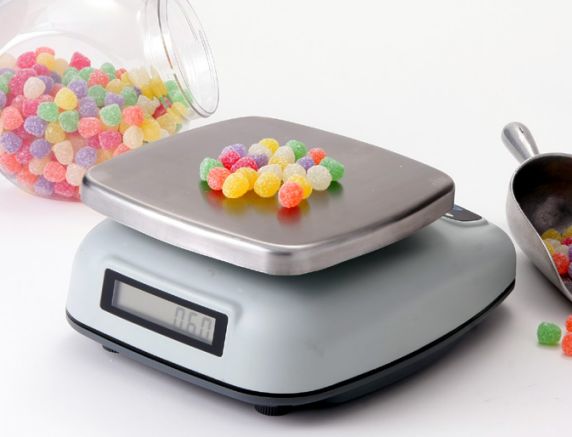

Doran PC-500 Wash Down Scale 10 lb.
