BRECKNELL PS3000-LCD with SBI-210 Indicator

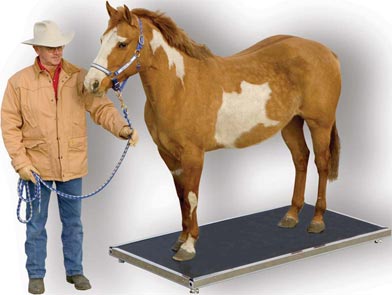

Accurate and reliable: ideal for accurately weighing horses and other larger animals, helps to remove the guesswork where treatments or administration of feed needs to be closely monitored. Capacity of 3,000 lb / 1,500 kg makes it ideal for a wide range of horses.
Delivered by Motor Freight to business addresses only (Zoned Commercial) with a loading dock or forklift. All other charges are the buyers responsibility. (Liftgate, Residential, Construction, Military) Approx ship weight 250 lbs.
Solid construction and easy operation make the PS3000-LCD Floor Scale the ideal solution for weighing large
animals and veterinary usage, as well as freight operations. This scale has a 6.5 x 3.3 ft / 2 x 1 m platform with rubber mat as standard that reduces noise and risk of animals/goods slipping while weighing.
Simple to-operate, the indicator offers all the weighing functions needed for a wide range of applications as well as the display-hold function that retains results on the screen, while you tend to the animal. AC and battery powered means this scale can easily be installed in remote locations where power sockets are not available.
Durable design for rigorous applications. The PS3000-LCD is fitted with four waterproof IP67 load cells for easy clean-up between weighing sessions.
PS3000 FLOOR SCALE
SALTER BRECKNELL
Durable - Designed for rigorous applications
Versatile - Multitude of weighing jobs: equestrian weighing, shipping and receiving, feed carts, bulk containers
Hold Function - Ideal for single user weighing
Low Profile - Remote location operation with rechargeable battery
This scale used to have the SBI 100 Weight Display. That has been replaced by the SBI-210.
shown w/ optional indicator floor stand
|
PS3000-LCD Specifications
Capacity and Resolution
Model PS3000 can be used in either Metric or Imperial weighing modes as follows:
3,000 lb x 1.0 lb
1,500 kg x 0.5 kg
Dimensions
Platform: 39.37" W x 78.75" L x 3.93" H
1000 mm (W) x 2000 mm (L) x 100 mm (H)
Indicator: 9.75" W x 5.25" L x 6.5" H
250 mm (W) x 135 mm (L) x 165 mm (H)
SBI 210 Indicator Specifications
Construction: Robust ABS housing
Annunciators: -0-, motion, gross, net, tare, hold, pcs, %, HI/OK/LOW, battery, accumulation
Units: kg, lb, pcs, %
Tare: 100% subtractive
Check Weighing: Used when packing or filling to a set weight. This provides the operator a fast & simple visual to let them know the product is within the accepted weight window.
Counting: Used for stock control or to quickly work out the quantity of items within a box
Accumulation: Used when packing multiple items into one consignment to get the final consignment weight total
Hold: Allows a stable weight to be easily held once the goods have been removed from the scale
Animal Averaging Hold: Allows the animal weight to be correctly calculated even when it slightly moves around. Allows the animal to be weighed by a single person. This easy-to-use hold feature allows the scale to capture the weight and retain it while you tend to the animal.
Percentage: Allows the operator to easily carry out weighments on % basis
Mounting Brackets: Can be desk mounted or pole mounted either vertical or horizontally
Display: Large, easy-to-read six digit 1.5" / 38 mm high digit LCD with backlight
Power: 9V 600mA, 110-230V switch mode external power supply with USA/UK/EU interchangeable plug adapters or six AA batteries (not included)
Connection: 250 mm / 9.8" cable is fixed to indicator side with quick release connector. An additional 3 m / 10' of cable is connected to the floor scale junction box.
Built-in Power Saving Features: Subject to how the scale is to be used, there are a number of ways to prolong the battery life of this scale. From turning off the backlight to setting the auto off to engage when the scale is not in use.
Communication: One RS-232 bi-directional full duplex port.
Platform Specifications
Powder coat paint for corrosion protection
Mild steel construction with safety tread plate surface
150% overload protection
100% end loading capacity
Load Cell Specifications
4; 350 ohm single ended shear beam load cells
Top access ABS junction box for accurate signal trim and cornering
Optional Indicator Stand
Product Code: 816965002061
Stand height: 36" (914 mm); weight 11 lb (5 kg)
Stand base: 11.5" L x 11.5" W x 0.75" H
292 mm (L) x 292 mm (W) x 19 mm (H)
Old P/N: 816965004379
|
ITEM # ............ DESCRIPTION
810036380348 PS3000-LCD, 3,000 lb x 1 lb Steel base (78.7" x39.3" x3.9") with rubber mat
