Transcell SBS-10K Single End Load Cell

$255.00
SBS-10K is a single-ended shear beam Nickel plated alloy steel load cell from Transcell. Designed for low-profile scales and process applications. NTEP Approved 10,000 pound capacity. 20' cable.
SBS-10K
Qty:
Share on Facebook

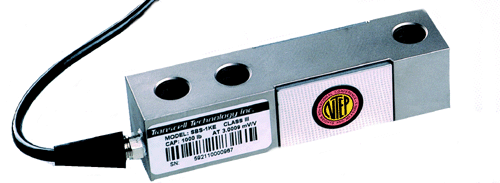

Transcell SBS-10k Single End Shear Beam Load Cells

Transcell SBS-10K Single End Shear Beam Load Cell Cap: 10,000 lbs.

MODEL
PART NUMBER
DESCRIPTION
SBS-1k
52765-0741
1,000 lb Capacity
SBS-2.5k
52765-0766
2,500 lb Capacity
SBS-4k
52765-0782
4,000 lb Capacity
SBS-5kS
52765-0790
5,000 lb Capacity - Small Envelope
SBS-5kL
52765-3638
5,000 lb Capacity - Large Envelope
SBS-10k
52765-0758
10,000 lb Capacity



Rated Output:
3.0mV/V±1%
Zero Balance:
±1% of rated output
Creep after 20 mintues:
0.03% of rated output
Non-linearity:
0.03% of rated output
Hysteresis:
0.02% ofg rated output
Repeatability:
0.02% of rated output
Temp. effect on output:
0.002% of applied output/°C
Temp. effect on zero:
0.002% of rated output/°C
Safe Temperature Range:
-10°C to +80°C
Temp Compensated:
-10°C to +50°C
Safe Overload:
1.5 x rated capacity
Input Impedance:
380ohm ±30ohm
Output Impedance:
350ohm ±3ohm
Insulation Resistance:
>5000 megohms
Rated Excitation:
10V DC/AC
Maximum Excitation:
20V DC/AC
Cable Length:
20 feet
CAPACITY
“Threads”
1k - 5kS
1/2-20 UNF-2B
5kL - 10k
3/4-16 UNF-2B
