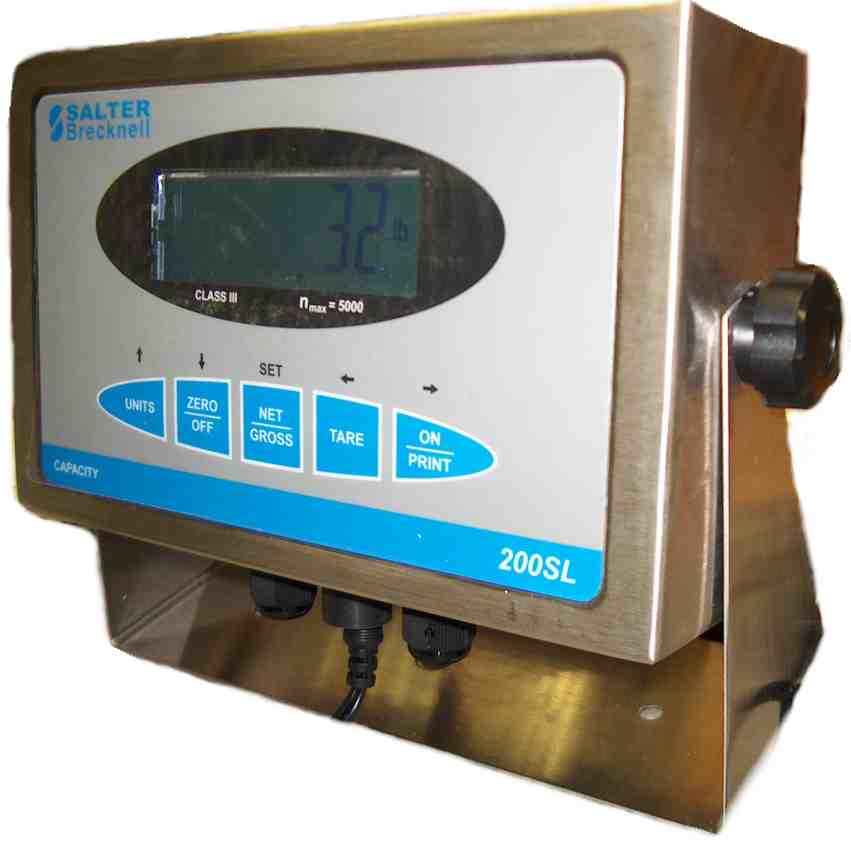

Salter Brecknell 200SL Digital Weight Indicator

The Salter 200SL Digital Weight Indicator is a general purpose, "no frills" digital indicator housed in a NEMA 4X Stainless Steel enclosure. It comes with a large (.8") LCD screen for easy readout of up to 50,000 display divisions, and supplies enough current for up to 4-350 ohm load cells. All setup parameters may be entered via the front panel keys. The 200SL uses full duplex RS-232 serial format for communication with many types of attached support equipment. The unit can transmit data on demand, or continuously in a popular data protocol to match a wide variety of printers, remote displays, or personal computers. The unit also comes complete with peak hold, which allows you to lock the weight on the digital readout.

Salter 200SL

Features

· Battery Operated - AC adapter included for continuous power operation and recharging of the internal lead acid battery
· Auto Shut Off - Extends battery life (configurable)
· Serial Port - Full duplex RS-232 configurable for demand or continuous output
· Display - LCD with selectable duration back light
· Load Cells - Drives up to four 350 ohm load cells
· Selectable Peak Hold Feature - Off, Automatic (configurable), or Manual (configurable)

· Approvals - NTEP
· Enclosure - Stainless Steel NEMA 4X
· Overall Dimensions (LxWxH): 10.4" x 3.1" x 7.7" (265mm x 80mm x 195mm)
· Construction: Stainless steel case, stainless steel mounting bracket.
· Display Specifications: 0.8" (20mm), 7-segment, 6 digit, LCD display
· Keypad Functions: 5 KEY -- Units, Zero/Off, Net/Gross, Tare, On/Print
· Battery Specifications: Rechargeable
· Battery Life: Approximately 20 hours depending on number and type of load cells, backlight, temp, etc..
· Operating Temperature: 14F through 104 F)
· Indicator Mounting Bracket: Stainless steel construction.
· Interface: Terminal strip
· Excitation Voltage: +5 VDC, 4x 350 ohm load cells
