Tripp-Lite Isobar Surge Suppressor

$99.95
Tripp Lite's ISOBAR is the world's number one selling premium suppressor series with more than 14 million satisfied customers and a safety-tested history of 20+ years. Robust surge suppression with sine-wave tracking protects against the heaviest of surge conditions. 4 outlets arranged in two filter banks prevent system crashes, reboots and performance problems common as noisy peripherals are powered off and on. Widely spaced outlets accommodate up to 2 large transformer plugs without blocking outlets.
ISOBAR4ULTRA
Qty:
Share on Facebook



ISOBAR4ULTRA TYPICAL APPLICATIONS

Ideal for premium protection of personal computers with peripherals, network and CAD / CAM / CAE workstations, internetworking accessories, telecommunications systems, point of sale equipment, audio/video and home theater systems in any home, office or industrial applications.

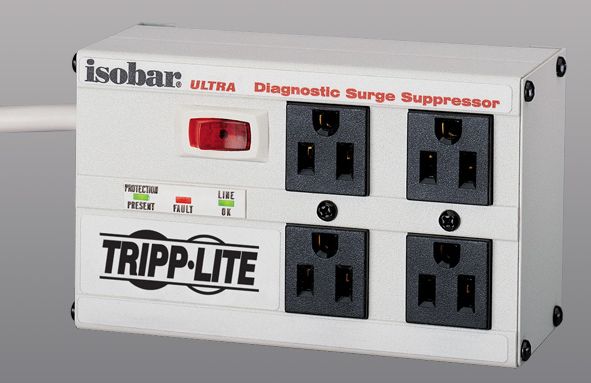

tripp lite isobar 4 ultra

PACKAGE INCLUDES
ISOBAR4ULTRA premium surge suppressor
Set of 4 outlet safety covers
Instruction manual with warranty information



ISOBAR4ULTRA KEY BUYING POINTS

Tripp Lite's ISOBAR is the world's number one selling premium suppressor series with more than 14 million satisfied customers and a safety-tested history of 20+ years

Robust surge suppression with sine-wave tracking protects against the heaviest of surge conditions, exceeding IEEE category A&B specifications and reducing 6,000V test surges to harmless levels less than 35 volts

Multi-component suppression circuits combine torroidal chokes, ferrite rod-core inductors, HF/VHF capacitors and multiple layers of metal oxide varistors into exclusive isolated filter banks that remove EMI/RFI interference, even noise from other pieces of connected equipment

4 outlets arranged in two filter banks prevent system crashes, reboots and performance problems common as noisy peripherals are powered off and on

Network grade surge suppression rated at 2200 joules / 85,000 amps

Widely spaced outlets accommodate up to 2 large transformer plugs without blocking outlets

3 LED indicators confirm suppressor operation and site wiring status, plus warning of suppressor or electrical fault conditions

Lighted power switch confirms power on/off status

6 foot AC line cord with space-saving angled input plug

Keyhole mounting tabs allow permanent installation

Set of 4 outlet covers safely seal off unused outlets

120V AC, 50/60Hz electrical compatibility

$50,000 Ultimate Lifetime Insurance (USA & Canada Only)

Lifetime product warranty

UL1449 listed - surge suppression (330V let-through), UL1283 listed - EMI protection, UL1363 listed - power tap, cUL approved to Canadian standards

isobar

ISOBAR4ULTRA SPECIFICATIONS
System overview:
"ISOBAR ULTRA premium surge and noise suppression system prevents equipment damage and performance problems resulting from damaging transient surges and line noise. Active filter network maintains noise-free output with zero reaction / response time. Rugged all-metal, mountable housing fitted with high quality duplex style output receptacles. 4 outlets, 2200 joules AC protection level, less than 35V let through voltage, 3 diagnostic LEDs."
Voltage compatibility:
120 VAC
Frequency compatibility:
50/60 Hz
OUTPUT
Output volt amp capacity (amps):
12
Output watt capacity (watts):
1440
Outlet quantity / type:
4 NEMA 5-15R
Transformer accomodation:
Supports up to 2 large transformer plug accessories without covering remaining outlets
INPUT
Input connection type:
NEMA 5-15P input plug
Input cord length (ft.):
6 ft.
Input cord length (m):
1.8
Recommended electrical service:
120V,15A
LEDS ALARMS & SWITCHES
Diagnostic LEDs:
PROTECTION PRESENT (green), LINE FAULT (red) and LINE OK (green)
Switches:
Two position red illuminated on/off power switch
AC SURGE / NOISE SUPPRESSION
Protection modes:
Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
AC suppression joule rating:
2200 joules
Clamping voltage (RMS):
140V
AC suppression response time:
NM = 0 ns. CM = <1 ns
AC suppression surge current rating:
85,000 amps (36,000 NM / 49,000 CM)
AC suppression components used:
Metal oxide varistors, toroidal balanced chokes, ferrite rod-core inductors and VHF capacitors.
Safe thermal fusing:
Prevents unsafe conditions during extreme extended overvoltages and catastrophic occurences
UL1499 let through rating:
330V - UL Verified
IEEE587 Cat. A ringwave let through:
Less than 35 volts
EMI / RFI filtering:
40-80 dB
Isolated filter banks:
Unique isolated filter bank design offers additional filtering between each duplex pair of outlets on the strip to prevent electrical noise interference between connected loads. Includes 2 filter banks.
Immunity:
Conforms to IEE 587 / ANSI C62.41
PHYSICAL
Unit Dimensions (HWD/in):
2.5 x 6 x 3.5
Unit Dimensions (HWD/cm):
6.4 x 15.2 x 8.9
Material of construction:
Metal
Integrated keyhole mounting tabs:
Metal end caps are fitted with keyhole mounting tabs for wallmount installation
Housing color:
Gray
Receptacle color:
Black
AC line cord color:
Gray
CERTIFICATIONS
UL1449 1998 Rev. (AC Suppression):
UL1449
UL1283 (EMI Filter):
UL1283
UL1363 (Power Tap):
UL1363
cUL / CSA (Canada):
cUL
Approvals:
Exceeds IEEE 587 category A&B specifications
WARRANTY
Product warranty:
Lifetime
Connected equipment insurance (USA and Canada Only):
$50,000
All warranty claims and guarantees are provided by the manufacturer
SPECIAL FEATURES
Appearance:
Rugged all-metal corded strip format with high quality duplex receptacles

specifications subject to change without notice
