Intercomp ACII-7.5K Aircraft Weigh Scales

Intercomp ACII-7.5K Aircraft Weigh Scales

$4,395.00
The Intercomp ACII-7.5K aircraft weighing scale 100407-RFX is a high quality scale with wireless handheld weighing indicator for easy weighing of light aircraft. This ACII-7.5K system enables you to justify purchasing an ultra efficient scale system versus outsourcing the work to an expensive independent contracted weighing service. The ACII-7.5K weigh system consists of three 2500 lb. capacity ultralight platform scales. Options include system carrying case and ramps. Lead time is usually 1-2 weeks. Comes with certificate of calibration. Ground Shipping Included (cont'l US)
100407-RFX
Qty:
Share on Facebook

Ground Shipping Included (cont'l US)

The economy Intercomp ACII-7.5K system enables you to justify purchasing an ultra efficient scale system versus outsourcing the work to an expensive independent contracted weighing service. This weigh system consists of three ultralight platform scales and is connected to the ACII Digital Indicator. The large LCD screen allows you to display each platform and sums the total weight. Other push button controls include on/off, percentage of weight and zero. All of the models weigh less than 150 lbs, which gives you the ultimate in portability and affordability.

Fully Integrated RFX™ Wireless Weighing Technology! Low cost, yet reliable, scale system available to operators for weighing light aircraft to determine center of gravity. This economy model enables you to justify purchasing an ultra efficient scale system versus outsourcing the work to an independent weighing service.

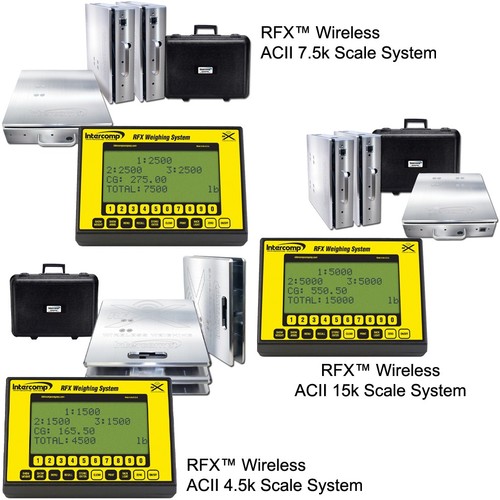

The ACII™ is built from Intercomp’s fully electronic scale technology. Intercomp has supplied this technology to the world’s major airlines, manufactures, maintenance centers and military branches. This system consists of three ultralight platform scales and RFX™ Wireless Handheld Indicator. The large LCD screen on the Indicator allows you to display each platform and total weight as well as fully control scale functions.

The ACII™ operates on standard AA Batteries that last up to 300 Hours in the Scales and 40 Hours in the Indicator. Systems are available in 4,500 lb (2,200 kg), 7,500 lb (3,400 kg) and 15,000 lb (6,800 kg) capacities.

- RFX Wireless Weighing Technology

- Handheld RFX Wireless indicator controls scale functions

- Calculates Center of Gravity

- RS232 serial output on scales, USB output on indicator

- Easy to read 0.5" backlit characters on indicator

- Standard AA rechargeable batteries last up to 300 hours in scales and 40 hours in Handheld RFX Wireless Indicator



Aircraft Weighing Scales



Systems Include:

* Three RFX™ Wireless Scale Pads

* Handheld RFX™ Wireless Weighing Indicator with Rechargeable Batteries, Battery Charger & Indicator Case

* AA Alkaline Batteries for Scale Pads





Part Number
Model
Capacity
Ship Weight
RFX Wireless ACII 4.5K System
4500 x 1 lb
90 lbs
RFX Wireless ACII 7.5K System
7500 x 1 lb
130 lbs
RFX Wireless ACII 15K System
15000 x 1 lb
160 lbs







Options Available Include: Ramps & Carrying Case For Scale Pads
