This BRAND NEW low-profile
NTEP Approved CAS platform floor scale offers quality construction and components
at an affordable price! The HFS 4'x4' pallet scale is built to meet the requirements
of light industrial and commercial business applications. This is one of
the best quality BRAND NAME values you're going to find for a QUALITY NTEP
Approved Legal for Trade 4'x4' (48"x48") floor scale!

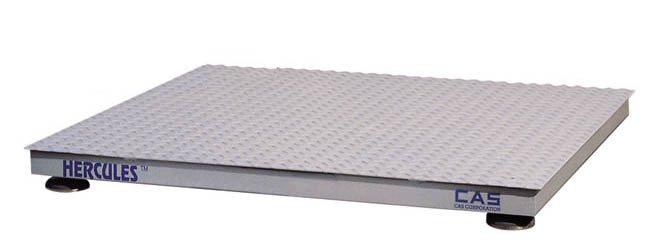

CAS Hercules HFS-405
or HFS-410 Platform Scales are economical platform scales that have a 5000 x
1 lb or 10,000 x 2 lb capacity. The dimensions are 48" x 48" x 3.5"
and the platform features an anti-skid diamond plate top. Can be configured
with several different choices of digital indicators.
|
Model
|
Dimensions
|
Capacity
|
Ship
Weight
|
| HFS-405 |
48"
x 48" x 3.5"
|
5000
x 1 lbs
|
275
lbs
|
| HFS-410 |
48"
x 48" x 3.5"
|
10,000
x 2 lbs
|
330
lbs
|
Options Available
| Digital
Indicators |
CAS Digital
Indicators |
| Ramps |
48x36 |
|
|
The quality construction
starts with a heavy structural channel sub-frame topped with laser cut diamond
tread plate decking. This combination forms a tough, rigid weighbridge. Nickel-plated
tool steel load cells are used in conjunction with a junction box. Level feet
are fully adjustable and provide a stable base with flexibility to compensate
for imperfect mounting surfaces.
Available in the
standard capacity of 5,000 lbs x 1 lbs or 10,000 x 2 lbs
48" x 48" (4' x 4') Dimensions
Standard options available include ramps
Options available
includes choice of digital readouts calibrated to the floor scale. The readouts
vary from general purpose, "no frills" digital indicator housed in a standard
black ABS enclosure to NEMA4X stainless steel enclosed indicators.
CAS DIGITAL WEIGHT
INDICATORS to CHOOSE FROM
| |
|
_big.jpg) |
.gif) |
.gif) |
| Model |
CI-2001A |
CI-2001B |
CI-2001AS |
CI-2001BS |
| Display |
LED
|
LCD
|
LED
|
LCD
|
| Enclosure |
ABS
|
NEMA
4X
|
| Units |
lbs/kg
|
| Dimensions |
7.32"x2.28"
x 3.34"
|
7.87"x5.11"x2.08"
|
| Approvals |
NTEP
98-103
|
| Power |
AC
power
|
| Load
Cell |
Powers
up to (4) 350 ohm cells
|
Brochure
(pdf file)
Buy
American Made Scales
