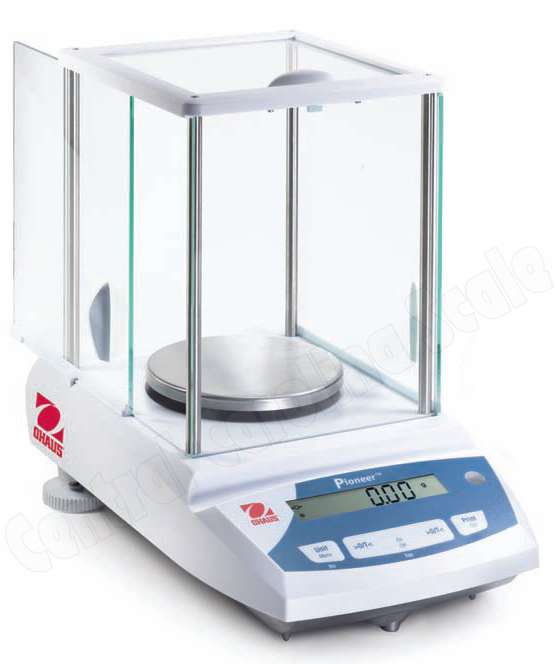

Ohaus Pioneer
analytical balances are designed for basic routine weighing in a variety
of laboratory, industrial and education applications. With the right
combination of performance and features, Pioneer balances offer uncomplicated
performance for all your basic weighing needs. Designed for basic
routine weighing in a variety of laboratory, industrial and education
applications, the Pioneer Series has the right combination of performance
and features.
To address the ease of cleaning requirement often expressed by routine
users, Pioneer¡¯s draftshield has been designed with easy to remove
doors and panels.
Selectable Environmental
Settings For Working in Practically Any Condition
To help adapt the
balance to real life working conditions, Pioneer is
designed with selectable environmental settings. When working in
harsh environments, the balance can be adjusted to compensate for
vibrations and other disturbances. Conversely, the balance can be
adjusted for working in slow filling applications where sensitivity
is a must.
| Ohaus
Pioneer PA64 Specifications |
|
Capacity (metric): |
65 g |
|
Readability (metric): |
0.0001 g |
|
Application Modes: |
Weighing, parts counting, percent |
|
Weighing units: |
mg, g, ct, oz, dwt, tical, tola, mommes, baht, grain, mesghal,
newton, ozt, teals |
|
Platform Size (mm): |
90 mm Dia. |
|
Span Calibration: |
50, 60 g |
|
Linearity (g): |
20 / 50 g |
|
Repeatibility (Std. Dev.): |
0.1 |
|
Linearity (mct): |
0.2 |
|
Tare range: |
1 |
|
Stabilization time (seconds): |
3 |
|
Scale Weight (lb/kg): |
10.0 lb / 4.5 kg |
|
Shipping Wt. (lb/kg): |
15.2 lb / 6.9 kg |
|
Dimensions WxHxD (in/cm): |
7.7 x 11.3 x 12.6 in / 19.6 x 28.7 x 32 cm |
|
Shipping dimensions (WxDxH) (in/cm): |
19.5 x 15.5 x 20.6 in / 49.5 x 39.5 x 52.2 cm |
|
Protective Plastic Case: |
Yes |
|
Operating Temperature Range: |
14¡ã F / -10¡ã C to 104¡ã F / 40¡ã C at 10%
to 80% relative humidity, non-condensing, up to 4000m above
sea level |
|
Storage temperature: |
-40¡ã F /-40¡ã C to 158¡ã F / 70¡ã C at 10% to
80% relative humidity, non-condensing |
| Ohaus
Pioneer PA114 Specifications |
|
Capacity (metric): |
110 g |
|
Readability (metric): |
0.0001 g |
|
Application Modes: |
Weighing, parts counting, percent |
|
Weighing units: |
mg, g, ct, oz, dwt, tical, tola, mommes, baht, grain, mesghal,
newton, ozt, teals |
|
Platform Size (mm): |
90 mm Dia. |
|
Span Calibration: |
50, 100 g |
|
Linearity (g): |
50 / 100 g |
|
Repeatibility (Std. Dev.): |
0.1 |
|
Linearity (mct): |
0.2 |
|
Tare range: |
1 |
|
Stabilization time (seconds): |
3 |
|
Scale Weight (lb/kg): |
10.0 lb / 4.5 kg |
|
Shipping Wt. (lb/kg): |
15.2 lb / 6.9 kg |
|
Dimensions WxHxD (in/cm): |
7.7 x 11.3 x 12.6 in / 19.6 x 28.7 x 32 cm |
|
Shipping dimensions (WxDxH) (in/cm): |
19.5 x 15.5 x 20.6 in / 49.5 x 39.5 x 52.2 cm |
|
Protective Plastic Case: |
Yes |
|
Operating Temperature Range: |
14¡ã F / -10¡ã C to 104¡ã F / 40¡ã C at 10%
to 80% relative humidity, non-condensing, up to 4000m above
sea level |
|
Storage temperature: |
-40¡ã F /-40¡ã C to 158¡ã F / 70¡ã C at 10% to
80% relative humidity, non-condensing |
| Ohaus
Pioneer PA214 Specifications |
|
Capacity (metric): |
210 g |
|
Readability (metric): |
0.0001 g |
|
Application Modes: |
Weighing, parts counting, percent |
|
Weighing units: |
mg, g, ct, oz, dwt, tical, tola, mommes, baht, grain, mesghal,
newton, ozt, teals |
|
Platform Size (mm): |
90 mm Dia. |
|
Span Calibration: |
100, 200 g |
|
Linearity (g): |
100 / 200 g |
|
Repeatibility (Std. Dev.): |
0.1 |
|
Linearity (mct): |
0.3 |
|
Tare range: |
1 |
|
Stabilization time (seconds): |
3 |
|
Scale Weight (lb/kg): |
10.0 lb / 4.5 kg |
|
Shipping Wt. (lb/kg): |
15.2 lb / 6.9 kg |
|
Dimensions WxHxD (in/cm): |
7.7 x 11.3 x 12.6 in / 19.6 x 28.7 x 32 cm |
|
Shipping dimensions (WxDxH) (in/cm): |
19.5 x 15.5 x 20.6 in / 49.5 x 39.5 x 52.2 cm |
|
Protective Plastic Case: |
Yes |
|
Operating Temperature Range: |
14¡ã F / -10¡ã C to 104¡ã F / 40¡ã C at 10%
to 80% relative humidity, non-condensing, up to 4000m above
sea level |
|
Storage temperature: |
-40¡ã F /-40¡ã C to 158¡ã F / 70¡ã C at 10% to
80% relative humidity, non-condensing |
|
Options/Accessories
71904 .......... SF42
...........................Compact impact printer, 42 column
............
67413 .......... SW12W .......................TAL software WinWedge
......................
71957 .......... 12101511 .....................Paper for SF42
printer (5 pack) ..............
71958 .......... 12101512 .....................Ribbon for SF42
printer .......................
71960 .......... 80500571 .....................RS-232 cable,
SF42 printer to Pioneer .........
70406 .......... 80500525 .....................RS-232 cable,
PC 9 pin to Pioneer .........
77712 .......... 80500524 .....................RS232 cable,
PC 25 pin to Pioneer ....................
102798 ........ 80850045 .....................Density determination
kit for Pioneer analytical balances (0.1 mg &
1 mg)
35263 .......... 76288-01
.....................Security device for pioneer .............................
102799 ........ 128-00 .........................Forceps, 2.75
in (70 mm) ............................
102800 ........ 129-00 .........................Forceps, 3.5
in (89 mm) ........................
33455 .......... 5076-00 .......................Aluminum scoop,
1.5 in x 2 in (3.8 cm x 5.1 cm), weight 4 g ...
33456 .......... 5077-00 .......................Gold scoop,
2.25 in x 3 in (5.7 cm x 7.6 cm), weight 10 g ....
33454 .......... 4590-30 .......................Black scoop,
aluminum 4 in x 3.5 in (10.2 cm x 8.9 cm), weight 24 g
WinWedge is a registered trademark of TAL Software.
|
